Xflex MT
From its initial conception as an Xflex machine, the Xflex MT has evolved to multi-task machining center capable of turning, gear/spline machining, as well as performing the conventional milling/drilling operations of a machining center.
Thanks to its modularity, these machining centers guarantee maximum stability and flexibility for high production environments. It is also a flexible solution for low-mid volume lines that allows increased productivity by performing as many operations as possible in one single clamping.

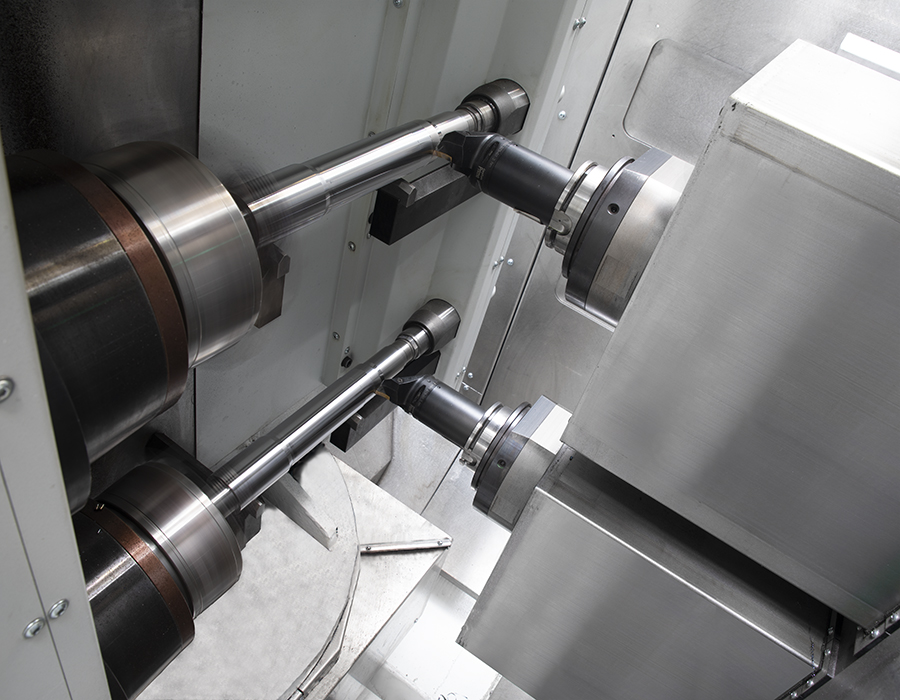

- High adaptability to different production scenarios, by means of a modular platform that allows multiple spindles per machining unit. Independent spindle Z axis available for twin spindle configuration.
- Compatible with Dry, MQL or high-pressure coolant machining.
- Design focused on favoring chip shedding.
- Ergonomic design for tool change and maintenance activities.
- Suitable configuration for gantry, robot, or manual load.
- 5 axis machining center. All linear axis provided with linear scales.
- Tool interface HSK-63, HSK-80 or HSK-100. Other interfaces upon request.
- Motorized or conventional spindle.
- Torque motor in the fixture for turning.
- Chain type automatic tool changer with 24 or 36 tools. Tool capacity can be upgraded upon request.
- Multiple tool breakage detection systems (laser, mechanical check, tool monitoring, etc.).
- Tool presence control in the tool exchange position between spindle and magazine.
- Unobstructed chip shedding designed for MQL machining.
- Totally sealed stainless steel front guarding with no horizontal surfaces.
- Honeycomb bed design so chips fall directly to the conveyor.
Machining unit
- 3 axis unit (X/Y/Z).
- 1 or 2 spindles. Limited by the part swing diameter and machining process tolerances.
Fixture options
- 1 or 2 fixtures (one side only). Limited by the part swing diameter and machining process tolerances.
- Axes: A / B / A+B.
- NC motion in different fixture elements as an option.
Load/unload options
- Gantry load, by means of a loader integrated in the machine design.
- Robot load.
- Manual load. Directly to the fixture or by means of a loader integrated in the machine design.
-
1 Machining unit
- 3 axis unit (X/Y/Z).
- 1 or 2 spindles. Limited by the part swing diameter and machining process tolerances.
-
2 Fixture options
- 1 or 2 fixtures (one side only). Limited by the part swing diameter and machining process tolerances.
- Axes: A / B / A+B.
- NC motion in different fixture elements as an option.
-
3 Load/unload options
- Gantry load, by means of a loader integrated in the machine design.
- Robot load.
- Manual load. Directly to the fixture or by means of a loader integrated in the machine design.
Related
applications
Rotor Shaft
Camshaft
Input/Output Shaft
Related
products
Xflex
Our modular and flexible machining center solution for various parts and operations.
We can help you with the manufacturing process of many other applications
